REPLACEMENT
HINT:
COMPONENTS:
Use the same procedures for the RH side and LH side.
The Procedures listed below are for the LH side.
REMOVE FRONT WHEEL
REMOVE FRONT AXLE HUB LH NUT
SST 09930−00010
DISCONNECT SPEED FRONT LH (W/ ABS)
SEPARATE FRONT DISC BRAKE CALIPER ASSY LH
a. Remove the 2 bolts and separate the front disc brake caliper assy LH from the steering knuckle LH.
NOTICE: Use a string or other device to keep the brake caliper from hanging down by the flexible hose.
Separate front disc brake caliper assy LH
REMOVE FRONT DISC
SEPARATE TIE ROD ASSY LH SST 09628−62011
SEPARATE FRONT SUSPENSION ARM SUB−ASSY LOWER No.1 LH
REMOVE FRONT AXLE ASSY LH
a. Using a plastic hammer, separate the front drive shaft assy LH from the front axle hub sub−assy LH.
NOTICE: Be careful not to damage the boot and speed rotor.
(w/ABS)
b. Remove the 2 bolts, nuts and steering knuckle LH with the front axle hub sub−assy LH.
9. REMOVE LOWER BALL JOINT ASSY FRONT LH
Remove the cotter pin and nut.
Using SST, remove the lower ball joint assy front LH.
SST 09628−62011
Remove lower ball joint assy front LH
10. REMOVE FRONT WHEEL BEARING DUST DEFLECTOR No.1 LH
a. Using a screwdriver, remove the bearing dust deflector No.1 LH.
Remove front wheel bearing dust deflector No.1 LH
11. REMOVE FRONT AXLE HUB LH HOLE SNAP RING
a. Using snap ring pliers, remove the front axle hub LH hole snap ring.
Remove front axle hub LH hole snap ring
12. REMOVE FRONT AXLE HUB SUB−ASSY LH

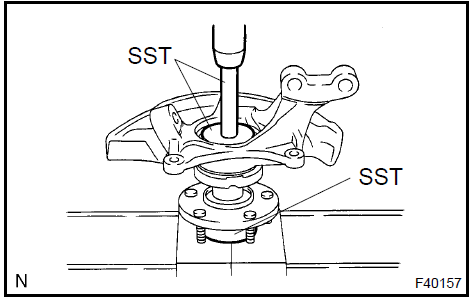

a. Using SST, remove the front axle hub sub−assy LH.
SST 09520−00031
b. Using SST and a press, remove the bearing inner race (outside) from the front axle hub sub−assy LH.
SST 09950−00020, 09950−60010 (09951−00410), 09950−70010 (09951−07100)
13. REMOVE DISC BRAKE DUST COVER FRONT LH
a. Using a torx) wrench (T30), remove the 4 bolts and disc brake dust cover front LH.
14. REMOVE FRONT AXLE HUB LH BEARING
Place the bearing inner race (outside) on the front axle hub LH bearing.
Using SST and a press, press the front axle hub LH bearing until it contacts the SST.
SST 09527−17011, 09950−60010 (09951−00600), 09950−70010 (09951−07100)
c. Using a spanner to make the steering knuckle LH horizontal, fix it to the V block, as shown in the illustration.
NOTICE: Be sure the steering knuckle is horizontally positioned.
d. Using SST and a press, remove the front axle hub LH bearing.
SST 09527−17011, 09950−60010 (09951−00600), 09950−70010 (09951−07100)
15. INSTALL FRONT AXLE HUB LH BEARING
a. Using SST and a press, install a new front axle hub LH bearing to the steering knuckle LH.
SST 09950−60020 (09951−00790), 09950−70010 (09951−07100)
Install front axle hub LH bearing
16. INSTALL DISC BRAKE DUST COVER FRONT LH
a. Place the disc brake dust cover front LH and using a torx) wrench (T30), torque the 4 bolts.
Torque: 8.3 N·m (85 kgf·cm, 73 in.·lbf)
17. INSTALL FRONT AXLE HUB SUB−ASSY LH
a. Using SST and a press, install the front axle hub sub− assy LH.
SST 09608−32010, 09950−60020 (09951−00790), 09950−70010 (09951−07100)
Install front axle hub sub-assy LH
18. INSTALL FRONT AXLE HUB LH HOLE SNAP RING
a. Using snap ring pliers, install a new front axle hub LH hole snap ring.
Install front axle hub LH hole snap ring
19. FRONT WHEEL BEARING DUST DEFLECTOR No.1 LH
a. Using SST and a hammer, install the bearing dust deflector No.1 LH.
SST 09316−60011 (09316−00011, 09316−00031), 09608−32010
HINT: Align the hole for the speed in the bearing dust deflector No.1 LH with the steering knuckle.
Front wheel bearing dust deflector No.1 LH
20. INSTALL LOWER BALL JOINT ASSY FRONT LH
Install the lower ball joint assy front LH and tighten the nut.
Torque: 123 N·m (1,254 kgf·cm, 91 ft·lbf)
Install a new cotter pin.
NOTICE: If the holes for the cotter pin are not aligned, further tighten the nut up to 60 .
21. INSTALL FRONT AXLE ASSY LH

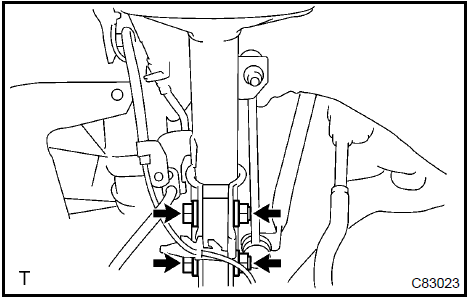

a. Install front axle assy LH with the 2 bolts and nuts to the shock absorber assy front LH.
Torque: 210 N·m (2,141 kgf·cm, 155 ft·lbf)
NOTICE:
Only when reusing the bolts and nuts, apply the small amount of engine oil to the screw part of the nuts.
Do not excessively push out the front axle assy LH.
Be careful not to damage the outboard joint boot.
Be careful not to damage the speed rot
or.
Install front axle assy LH
INSTALL FRONT SUSPENSION ARM SUB−ASSY LOWER No.1 LH
INSTALL TIE ROD ASSY LH
INSTALL FRONT DISC
INSTALL FRONT DISC BRAKE CALIPER ASSY LH
a. Install the front disc brake caliper assy LH with the 2 bolts to the steering knuckle LH.
Torque: 107 N·m (1,090 kgf·cm, 79 ft·lbf)
Install front disc brake caliper assy LH
26. INSTALL FRONT AXLE HUB LH NUT
a. Using a socket wrench (30 mm), install a new axle hub LH nut.
Torque: 294 N·m (2,998 kgf·cm, 217 ft·lbf)
27. SEPARATE FRONT DISC BRAKE CALIPER ASSY LH
a. Remove the 2 bolts and separate the front disc brake caliper assy LH from the steering knuckle LH.
NOTICE: Use a string or other device to keep the brake caliper from hanging down.
REMOVE FRONT DISC
INSPECT BEARING BACKLASH
INSPECT AXLE HUB DEVIATION
INSTALL FRONT DISC
INSTALL FRONT DISC BRAKE CALIPER ASSY LH
a. Install the front disc brake caliper assy LH with the 2 bolts to the steering knuckle LH.
Torque: 107 N·m (1,090 kgf·cm, 79 ft·lbf)
INSTALL SPEED FRONT LH (W/ ABS)
INSTALL FRONT AXLE HUB LH NUT
Using a socket wrench (30 mm), install a new axle hub LH nut.
Torque: 294 N·m (2,998 kgf·cm, 217 ft·lbf)
Using a chisel and a hammer, stake the axle hub LH nut.
Install front axle hub LH nut
INSTALL FRONT WHEEL
INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
CHECK ABS SPEED SIGNAL (W/ ABS)
